Execute Pick Tasks on WMS App

Execute Pick Tasks on WMS App**

This section provides the instructions on executing Order Pick. The operations are similar to Batch Order Pick and Wave Pick by Item, partial collecting information will be little different.

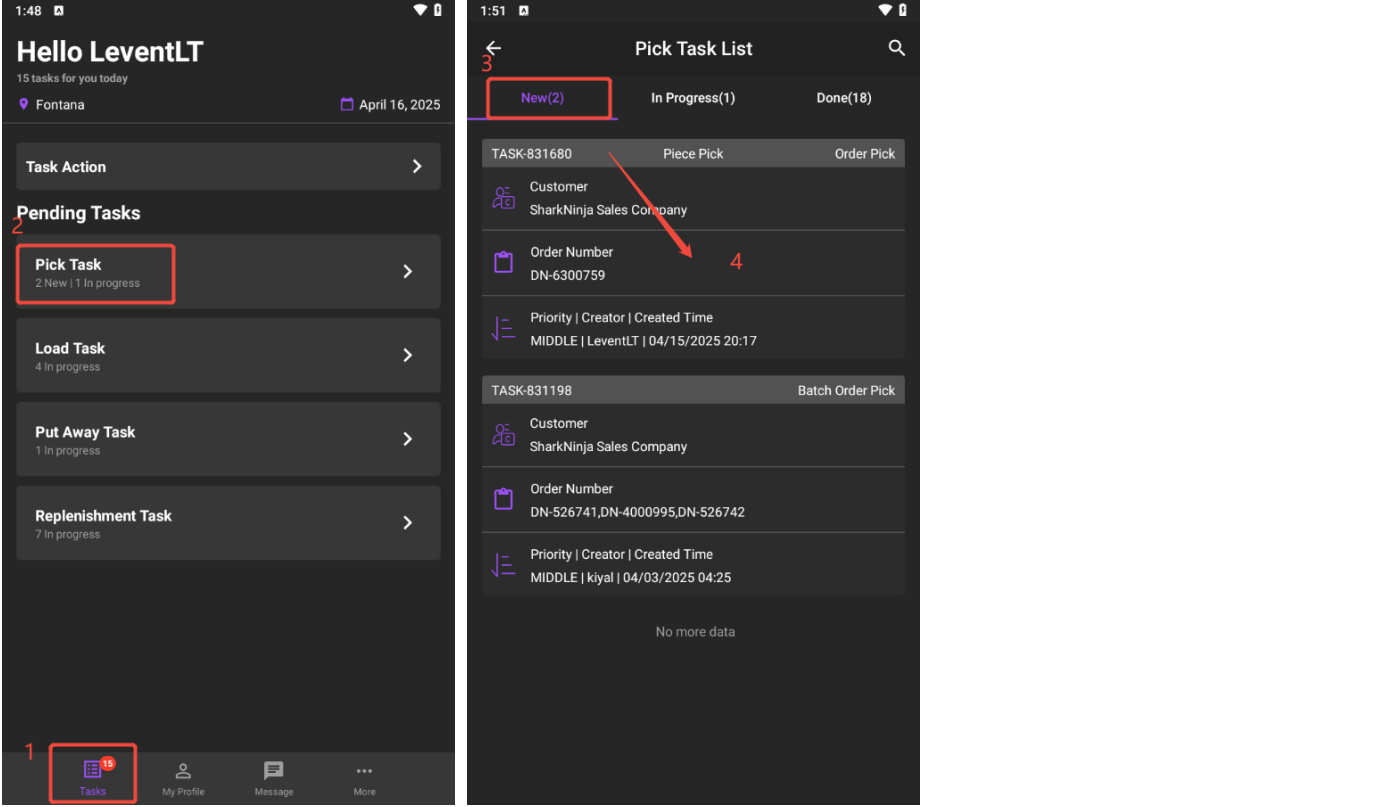

  1. Go to Tasks Menu > Pick Task.

  2. Keep in New tab, confirm the target task then tap it to start the task.

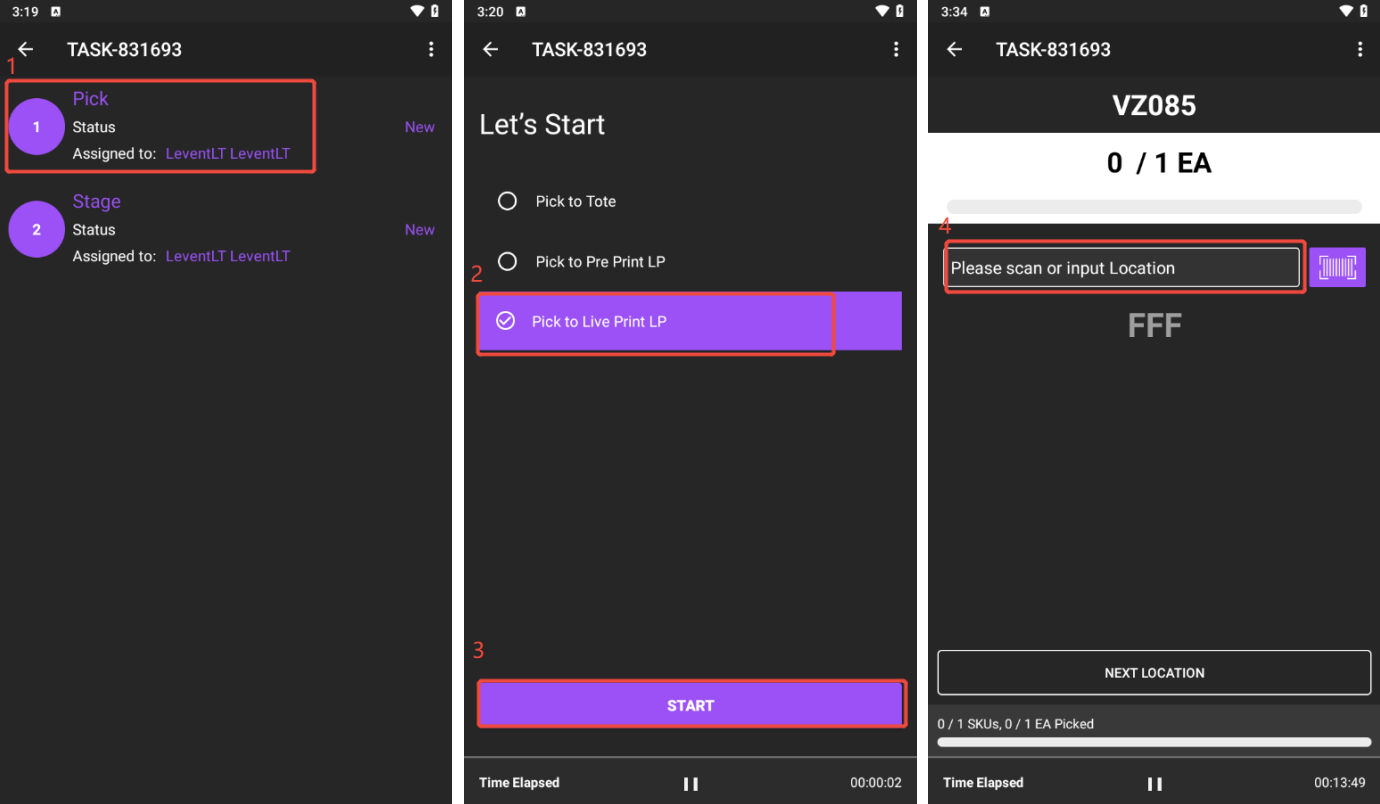

  1. Start the first step: Pick.

  2. Select one Pick Method, here we task Pick to Live Print LP as the example. Tap START button to proceed.

  3. Scan or enter Location.

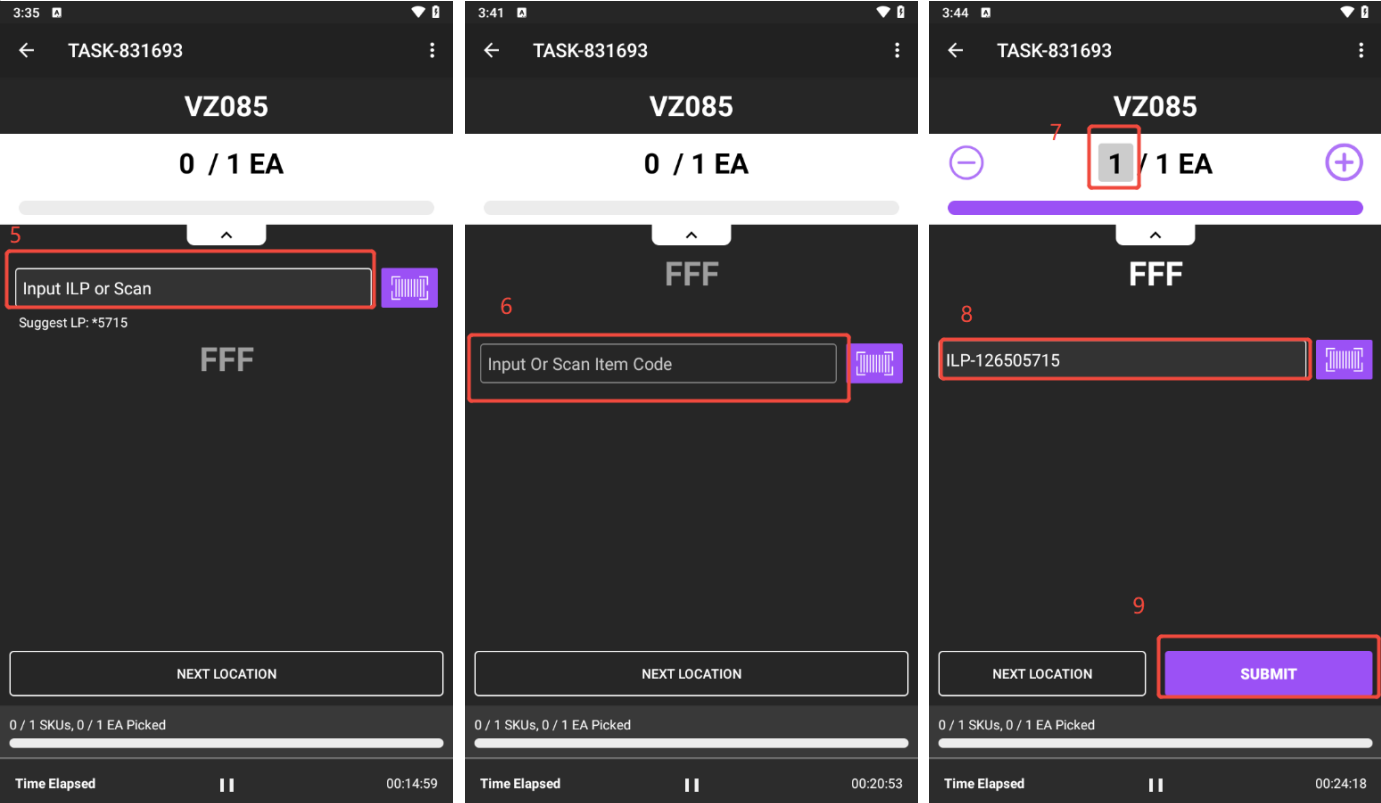

  1. Scan or enter ILP.

  2. Input or scan Item Code.

  3. Modify the item quantity, then scan or enter Pick to LP.


  1. SUBMIT these data.

  2. It will pop-up a window after submit successfully, please tap CONFIRM to close Pick Step now. The status will be automatically switch to Done.

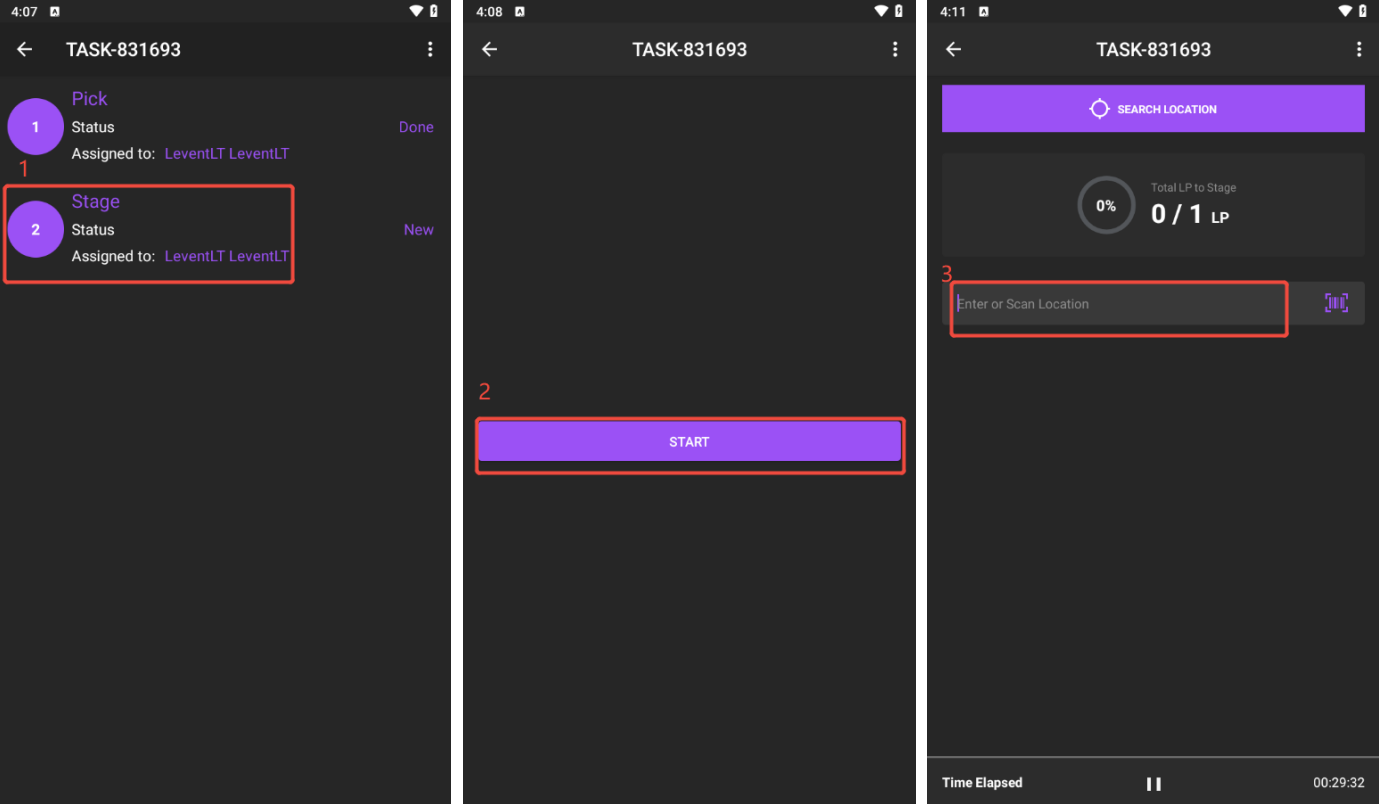

  3. Tap Stage step then tap START to execute this step.

  4. Enter or scan Location.

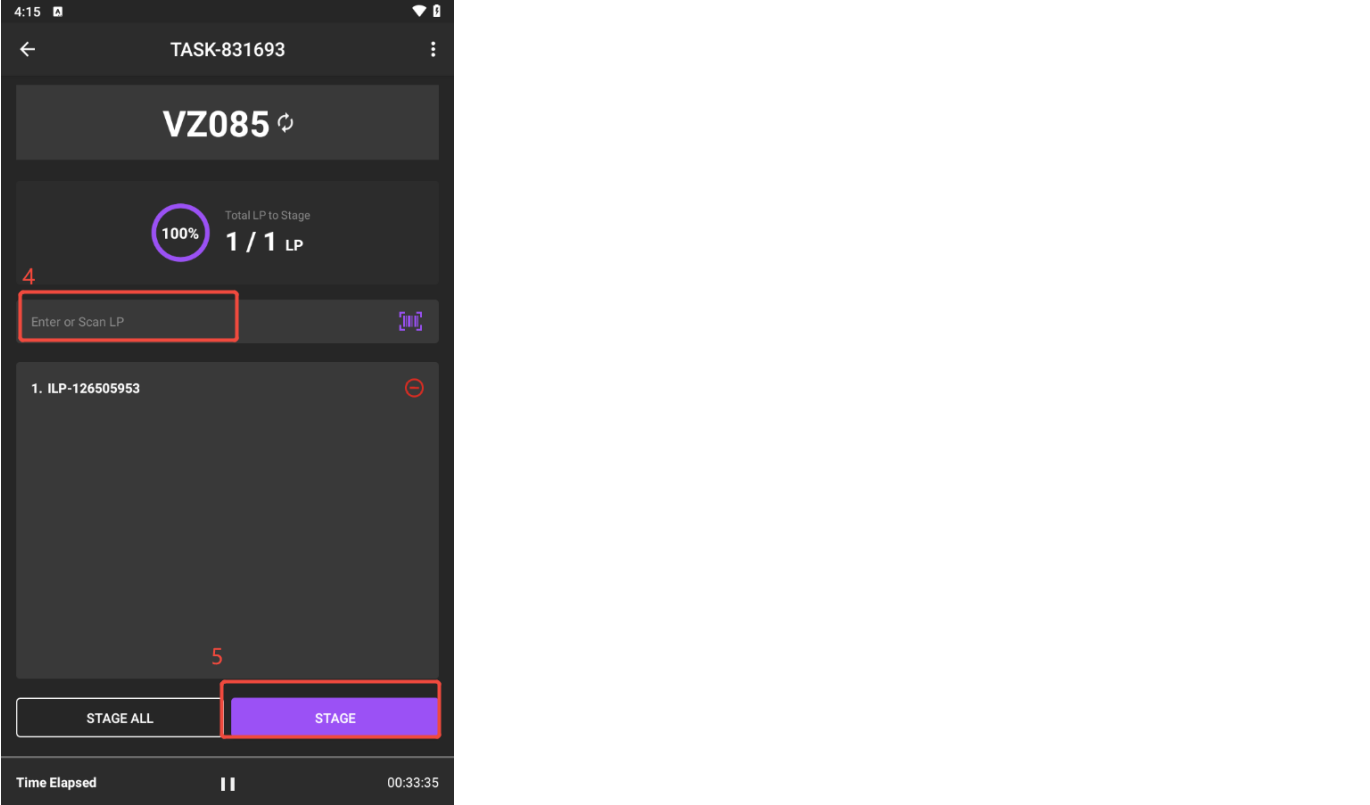

  1. Input or scan LP, then tap STAGE to continue. If the task contains multiple LPs, please repeat this step to add the all LP.

  2. After then, CONFIRM to close the task on pop-up window.
