Triggers

Triggers are the entry points that initiate your workflow execution. You must add a Trigger type node as the Start node of a flow. It includes the following types:

• Schedule Trigger (Cron): Starts at a fixed time or interval using cron expressions.
• API Trigger: Starts when an external system calls the provided API endpoint.
• Event Trigger: Starts when a specific system event occurs.
• Mail Trigger: Starts when incoming emails are received through connected mailboxes.

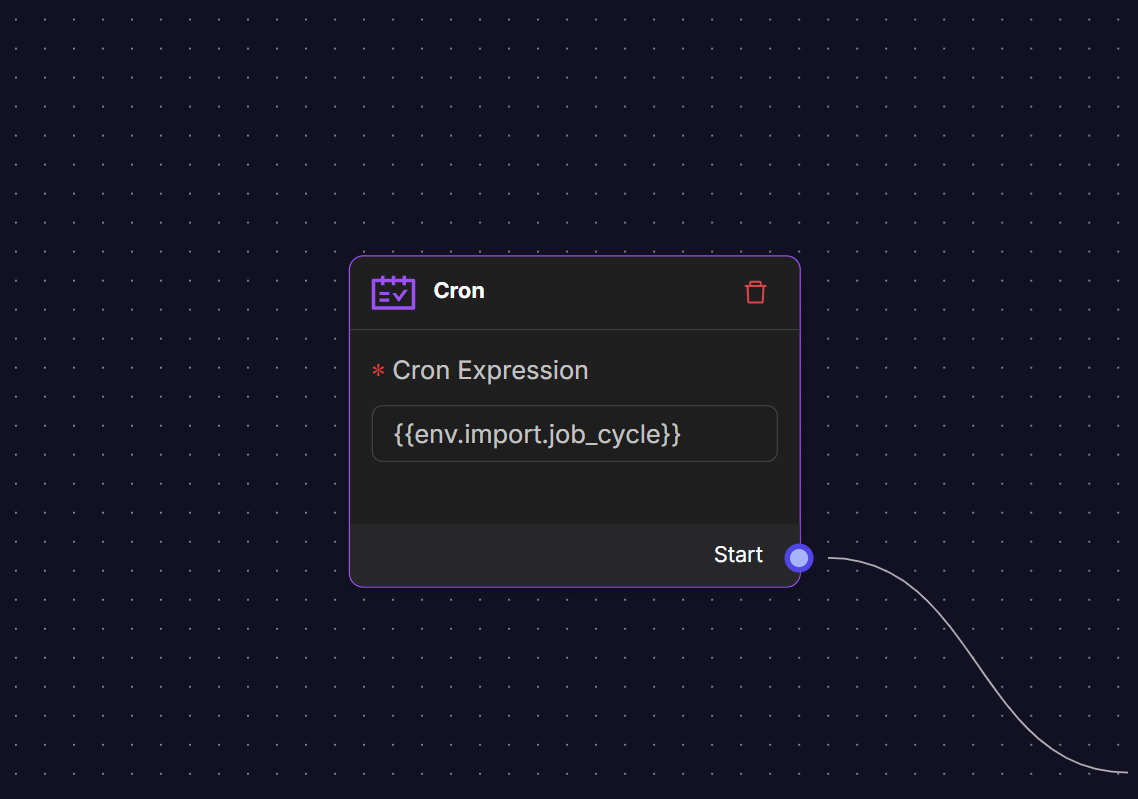

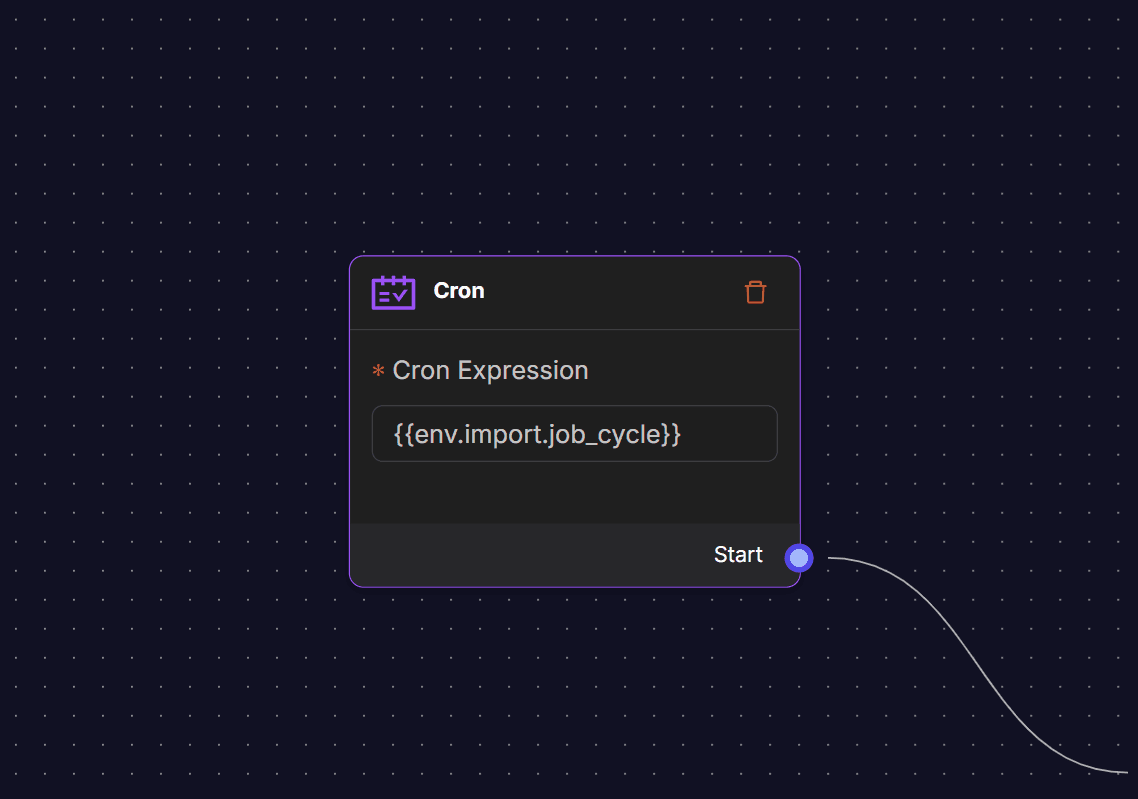

Cron Trigger

The Cron node is a schedule-based trigger that starts workflows at specified intervals using cron expressions.

• Cron Expression: Time-based scheduling using standard cron syntax. Example: Every 15/30 minutes: 0 */15 * * * *; 0 */30 * * * *.

• Dynamic Cron Expressions: Use environment variables for flexible scheduling {{env.import.job_cycle}}.

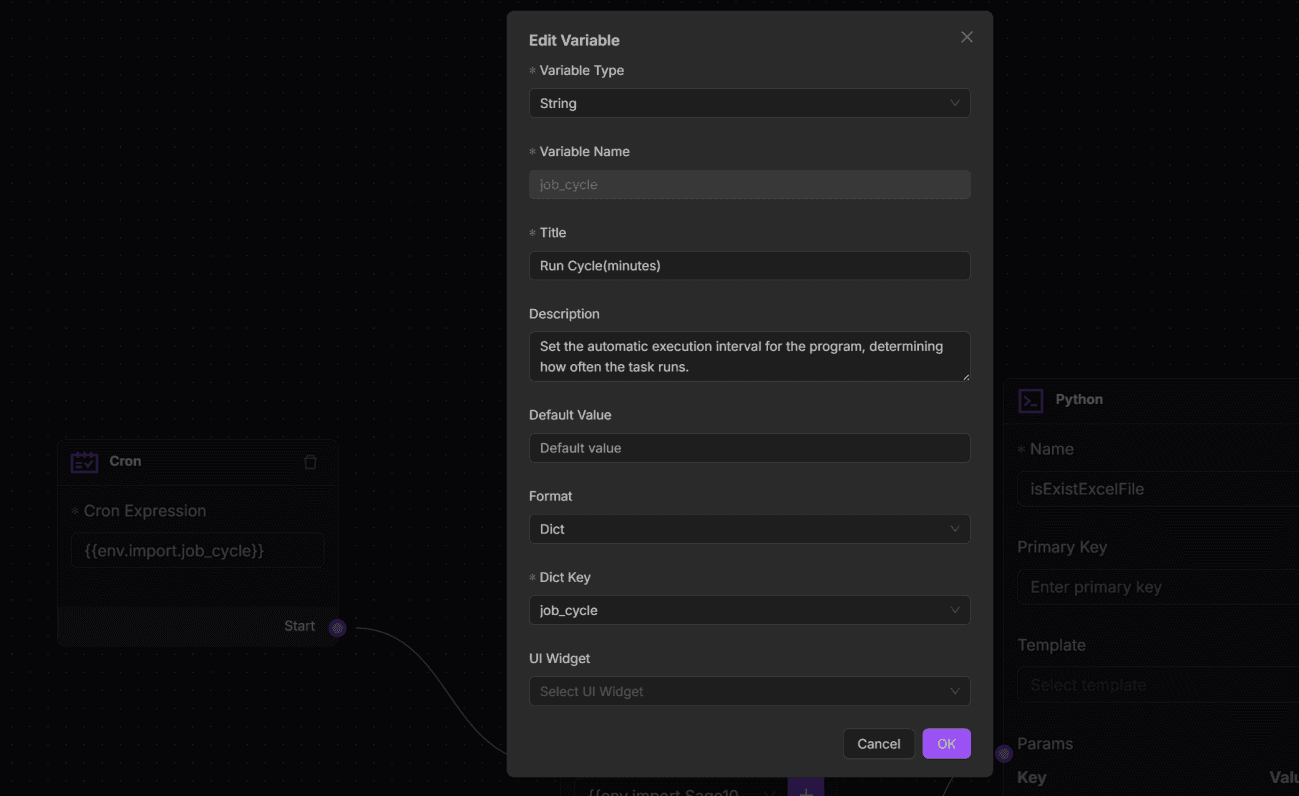

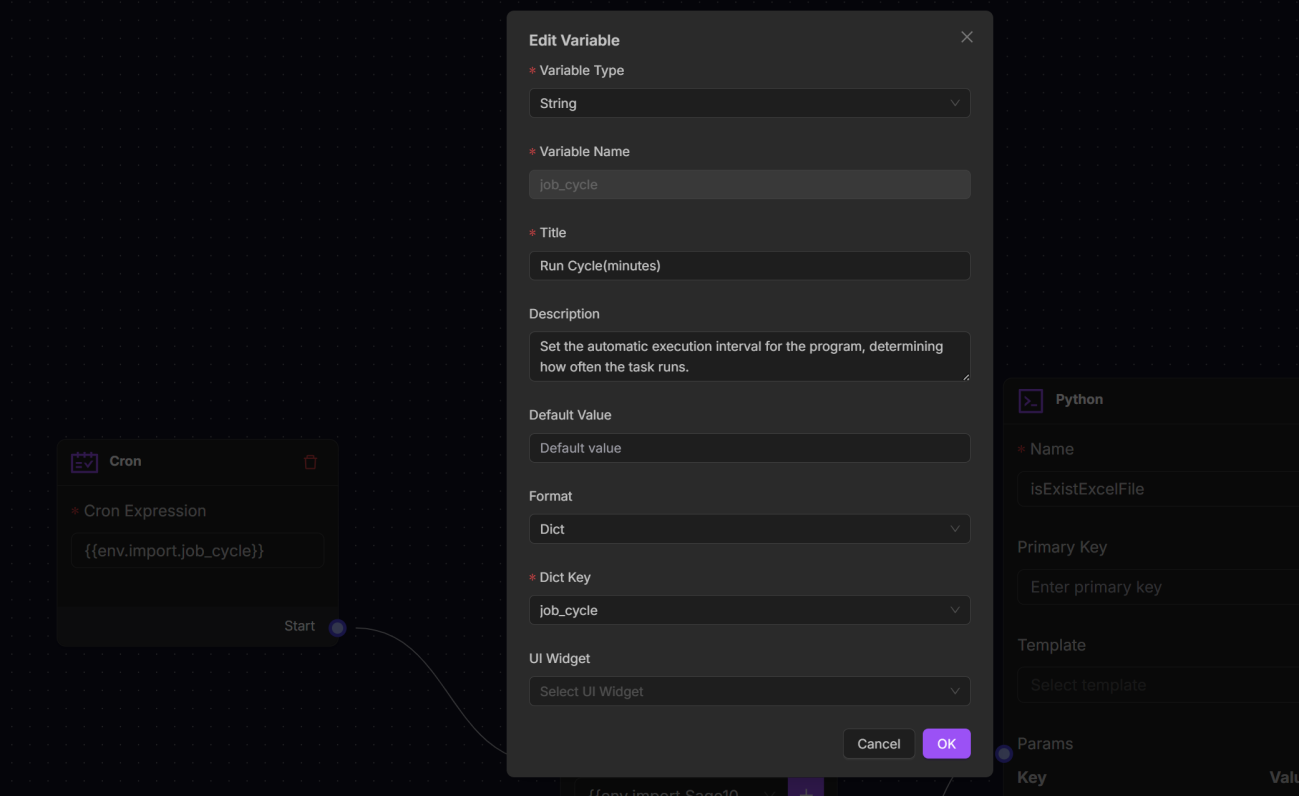

To Configure the dynamic Cron Expressions:

1. Click the Env environment on the top navig bar.
2. Choose the import variables.
3. Fill in the following fields:
   • Variable Type: Determines data type (String, Array, Number, Boolean, Object).
   • Variable Name: Internal identifier used in expressions.
   • Title: Human-readable display name.
   • Description: Context and usage notes for team members.
   • Default Value: Initial value when the variable is created.
   • Format: Choose from Date Time, Date, Time, or Dict.
   • Dict Key: Specify the dict key.
4. Click OK to save the setting.

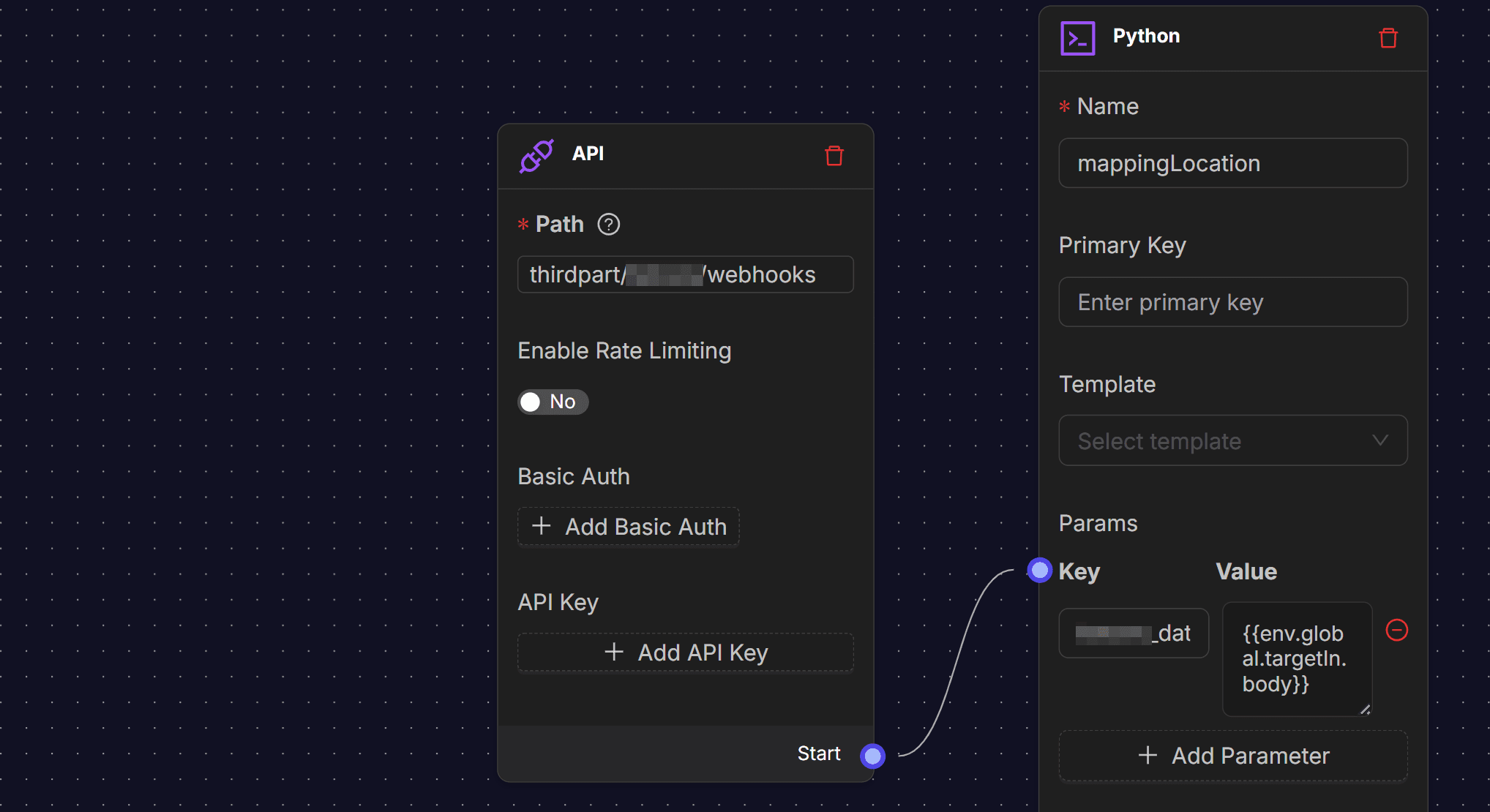

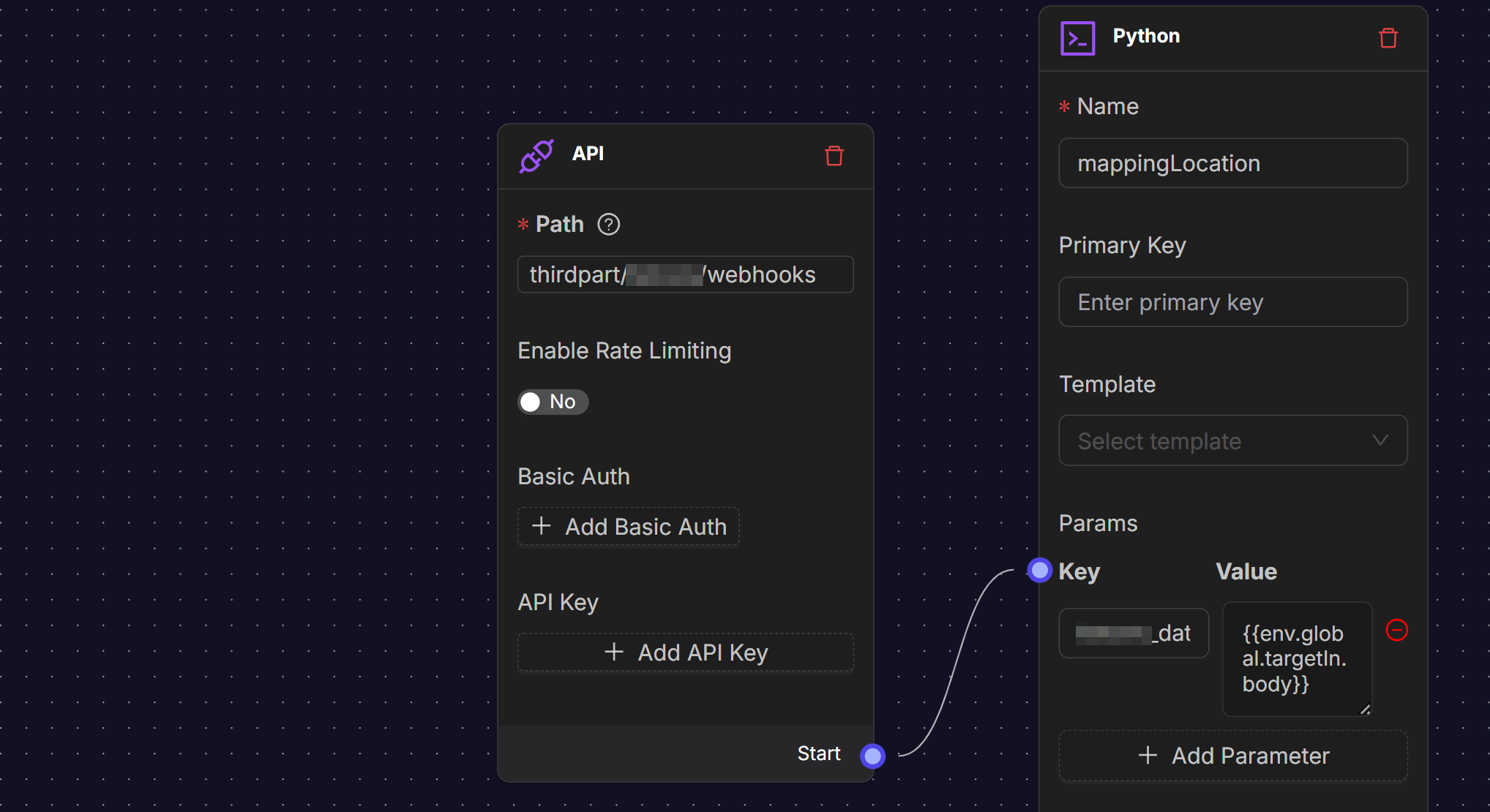

API Trigger

Use the API trigger to initiate workflows via HTTP requests. By specifying a path, you can trigger predefined tasks through a constructed URL. This is ideal for event-driven scenarios, such as external systems or services triggering internal processes.

Settings include:

• Path: Provide the URL endpoint path
• Enable rate limiting: Toggle on/off the switch.
• Rate Limit threshold: Configure request limits per time window.
• Authentication: Currently support Basic Auth and API Key only. For Basic Auth: Provide Username/password combination; for API Key: Provide Api key only.

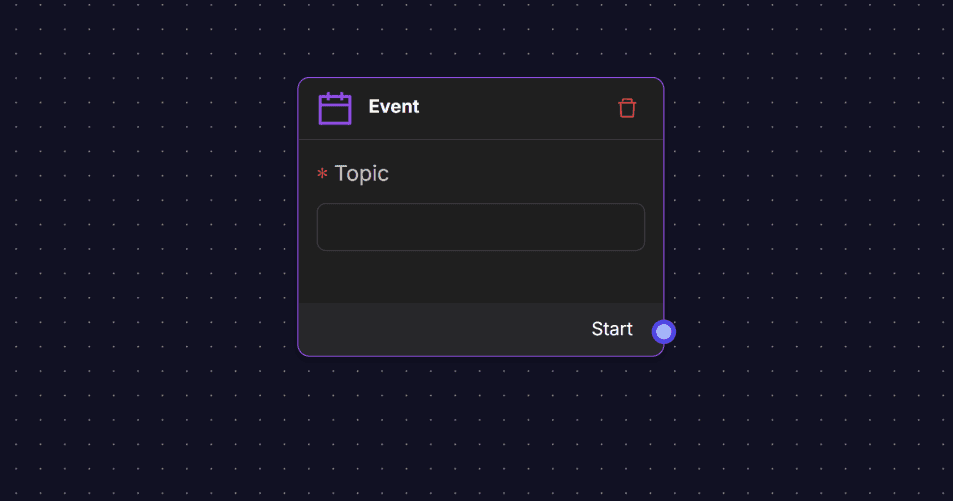

Event Trigger

The Event trigger rely on message topics (e.g., Kafka) to initiate workflows when specific events are published to a topic. This provides a dynamic way to handle system changes.

Settings include:

• Topic: Event name or category to listen for.

• Example Flow

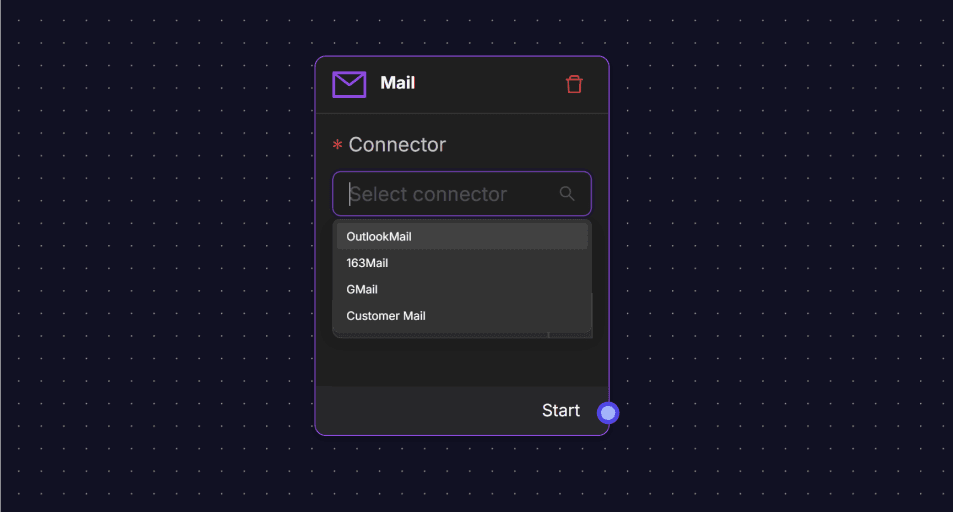

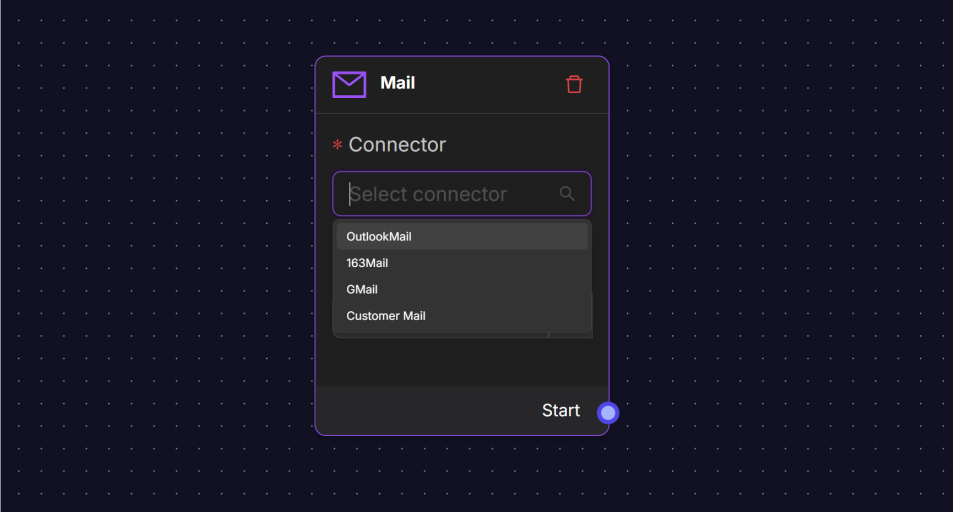

Mail Trigger

The Mail trigger monitor specific email accounts and initiate workflows based on incoming emails.

Settings include:

• Connector: Choose a mail Connector from the Email provider (Gmail, Outlook, 163 Mail).
