Execute Receive Task on WMS App

Once the task is assigned, the assignee will receive a notification. They are required to complete the task at the warehouse and the process on the WMS App.

This section introduces the detailed operations on the mobile application.

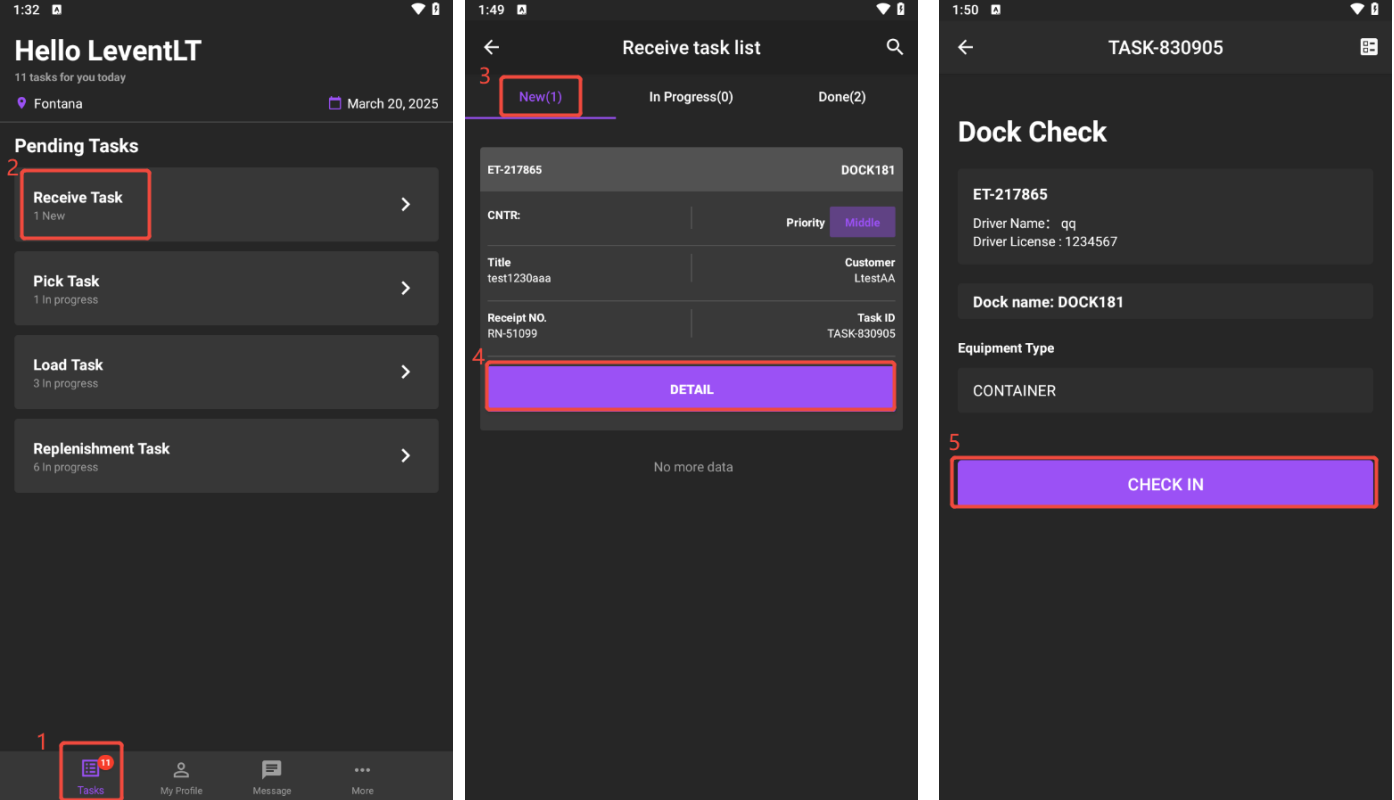

1. Go to Tasks > Receive Tasks, switching into receive task list.

2. Keep in New tab, confirm the target task which you want to execute, then tap DETAIL to continue.

3. Verify the task details, please tap CHECK IN to complete dock check if the information is correct.

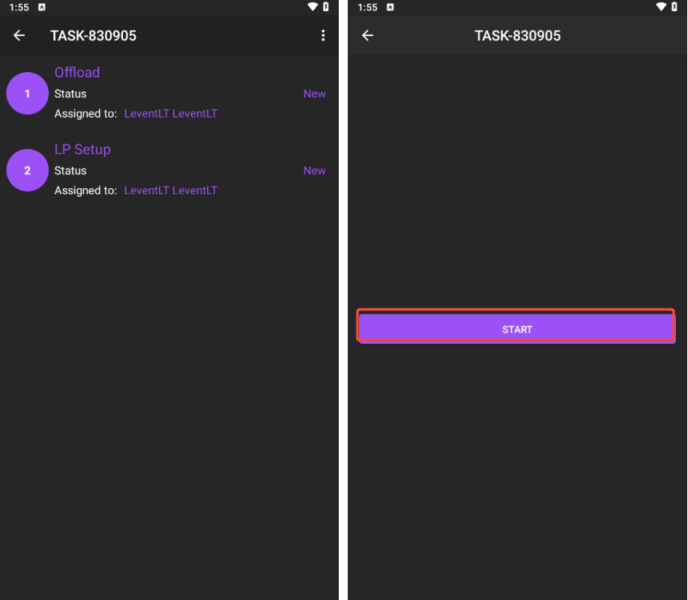

4. There are two sub tasks included in one receive task: offload and LP setup. Click the first sub task then tap START button to begin the process.

5. Upload the container’s photo to complete container info verification. Then please check whether the container number is the same as the one on the photo.

6. Upload the phone of seal, then confirm the consistency.

7. Upload the photo of the dock door. Then tap Next to proceed.

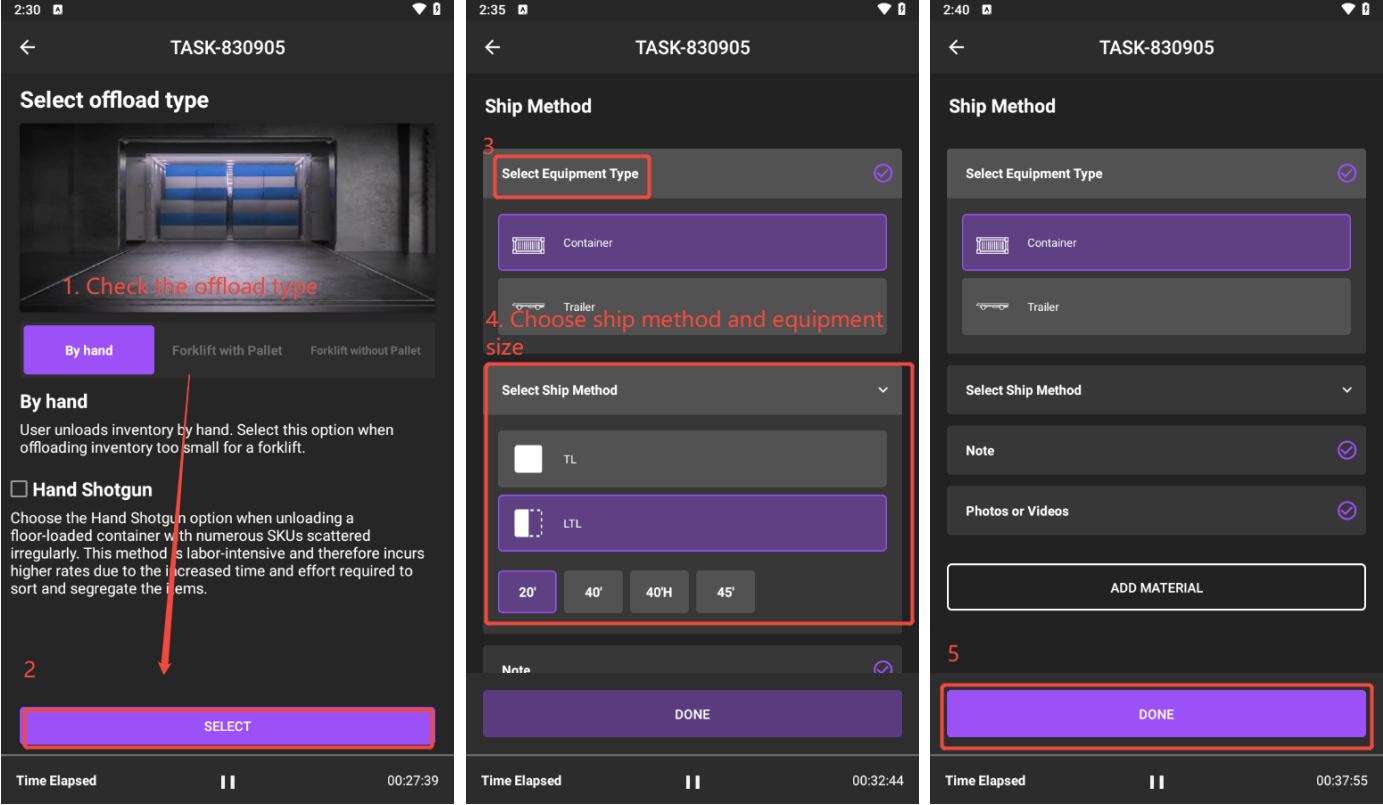

8. Next, choose the offload type. There are three types available: By hand, Forklift with Pallet and Forklift without pallet. Please select the suitable type based on the actual requirements.

9. Configure Equipment Type, select target Ship Method and the corresponding equipment size.

10. Setup note, upload photos or videos.

11. Tap DONE button to continue.

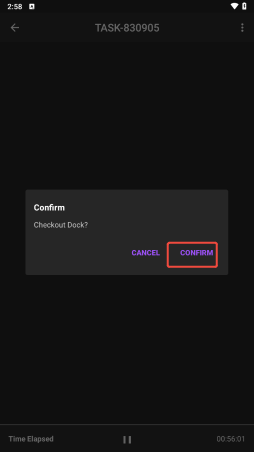

12. A pop-up window will appear to confirm whether to checkout dock, please tap Confirm to complete this sub task.

13. Start the LP setup sub task.

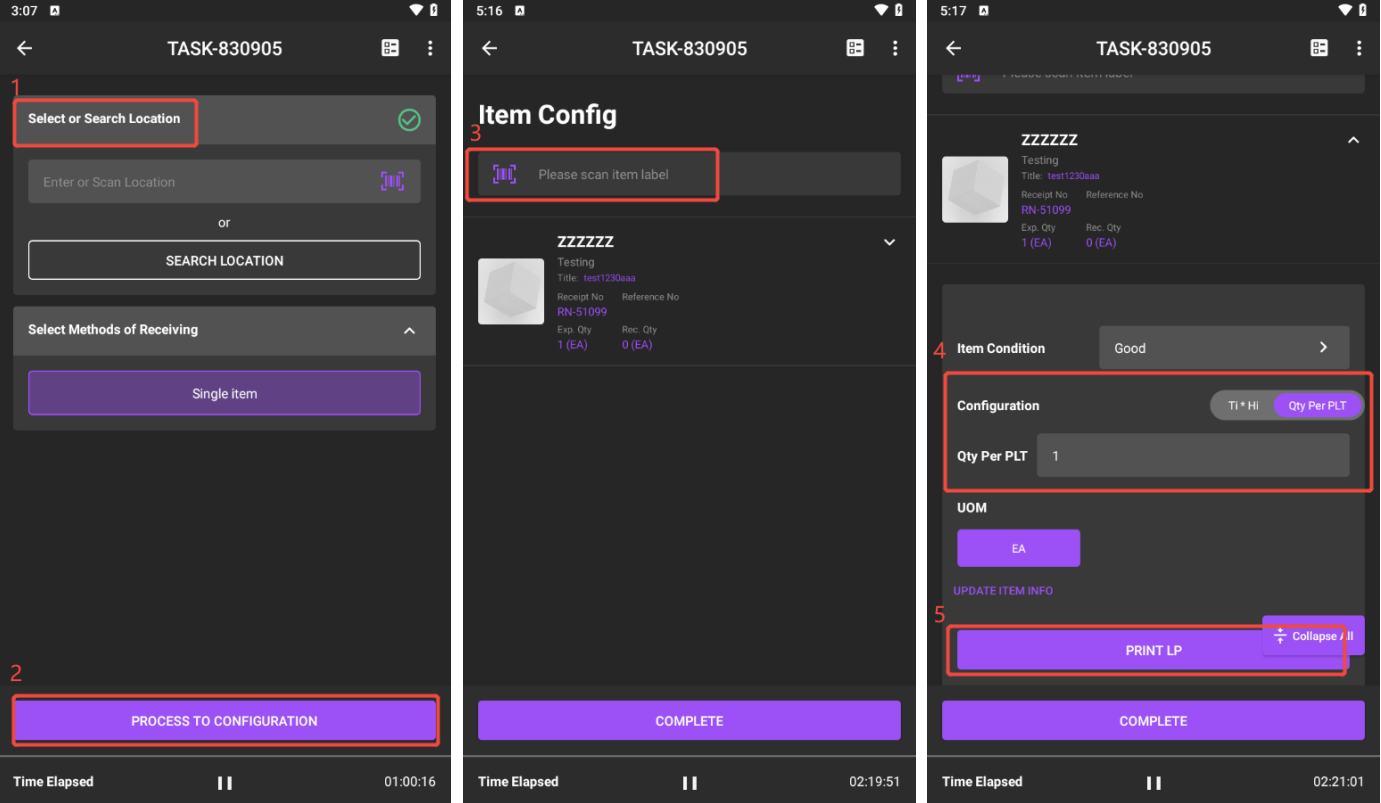

14. Enter/scan the location, or search for an available location. Then proceed by PROCESS TO CONFIGURATION button.

15. Scan the item label to start item configuration. Input the quantity per pallet, then PRINT LP if all configurations are correct.

    As for printing, please scan or enter the IP address of the local printer. Then follow the prompts to complete the labels printing.

16. Finally tap COMPLETE to finish this step. The status of both sub tasks are Done, it means that the receive task has been completed now.
