Build Pallet with Sorting By Carton
This topic introduces the transload workflow for an organization/customer whose "Transload Receive Mode" has been set as Build Pallet with Sorting by Carton. In this mode, the products are received in cartons, which are sorted by different destinations and then stacked onto corresponding pallets. These pallets are scanned during loading and then shipped.
Add/Import Receipt
The inbound receipt can be created by importing from edited templates or EDI.
Inbound Receiving
Upon the arrival of the products at the warehouse, finish window check-in and then transload receiving task.
- Log into Item Transload. In Window Check In > Entry List, create an entry and finish window check-in. A transload receive task is created and a specific assignee is appointed for this task.
-
The assignee then finds and finishes the transload receive task in the Transload app on the work phone. Refer to the following instructions.
a. Log into the Transload app on the work phone.

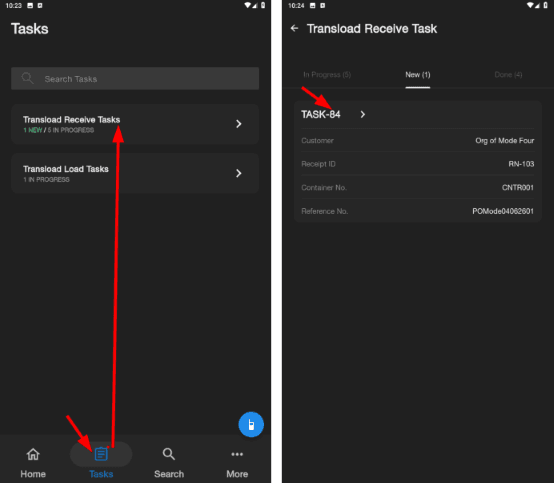

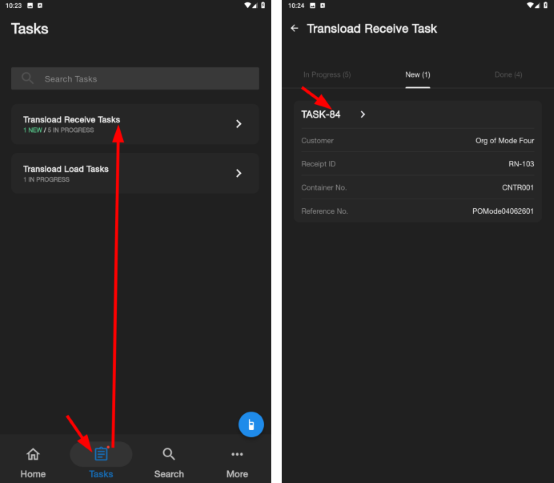

b. Go to Tasks > Transload Receive Tasks, find the desired task in the New tab, and tap the task ID.

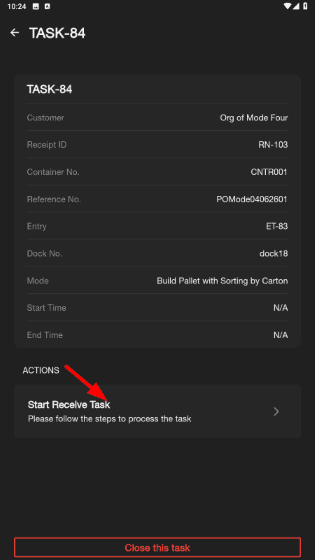

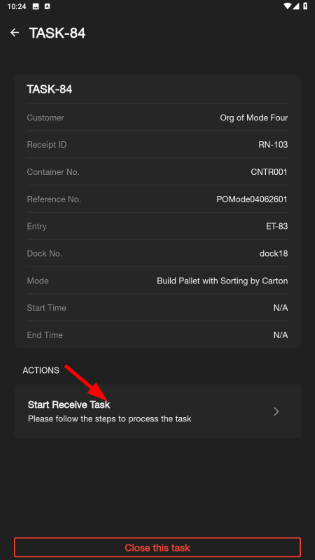

c. Tap Start Receive Task.

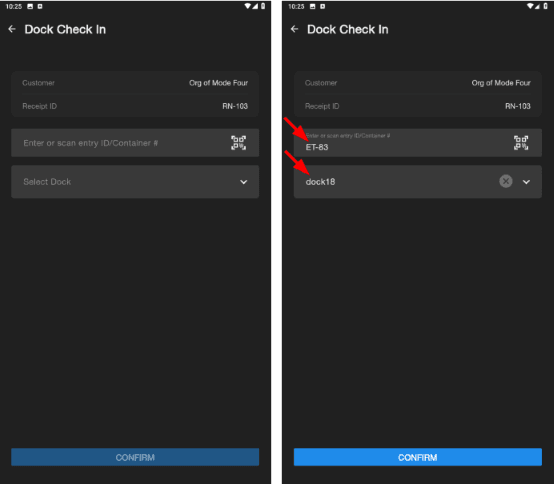

d. Enter or scan the Entry ID or Container No., select the dock No., and tap CONFIRM.

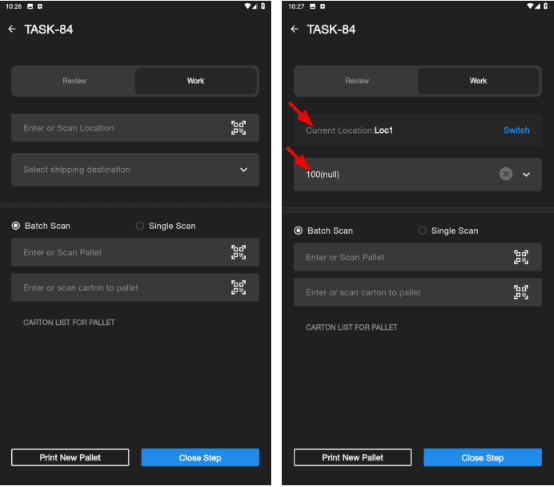

e. In the Work tab, scan or enter the location, and then select one desired destination, which will be the standard for sorting the cartons to build each pallet.
f. Select one scanning option. With Batch Scan, you can scan all the cartons that are to be shipped to one identical destination and place them onto one pallet; Single Scan means one carton in one pallet.

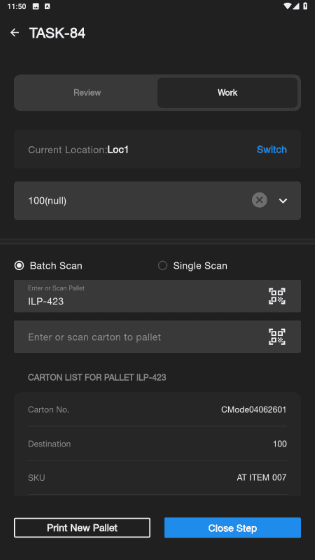

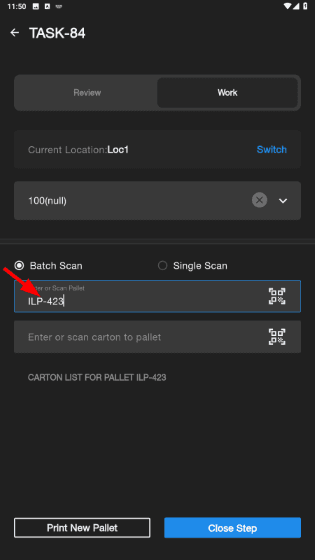

g. Tap Print New Pallet to generate a new LP and it will be automatically entered into the text box.

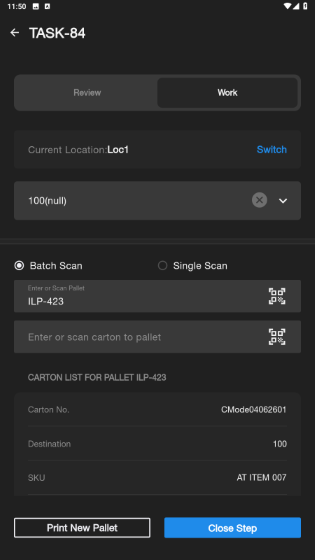

h. If Batch Scan is selected, scan all the cartons that are bound to the previously selected destination. If Single Scan is selected, scan just one cartonto be placed on this pallet, and create the next LP and scan the carton to be placed onto this pallet; repeat this procedure until all the cartons of this destination are scanned. The scanned cartons are listed below.
i. When all cartons for all the destinations are scanned and placed onto respective pallets, tap Close Step.
j. Tap Close this task.

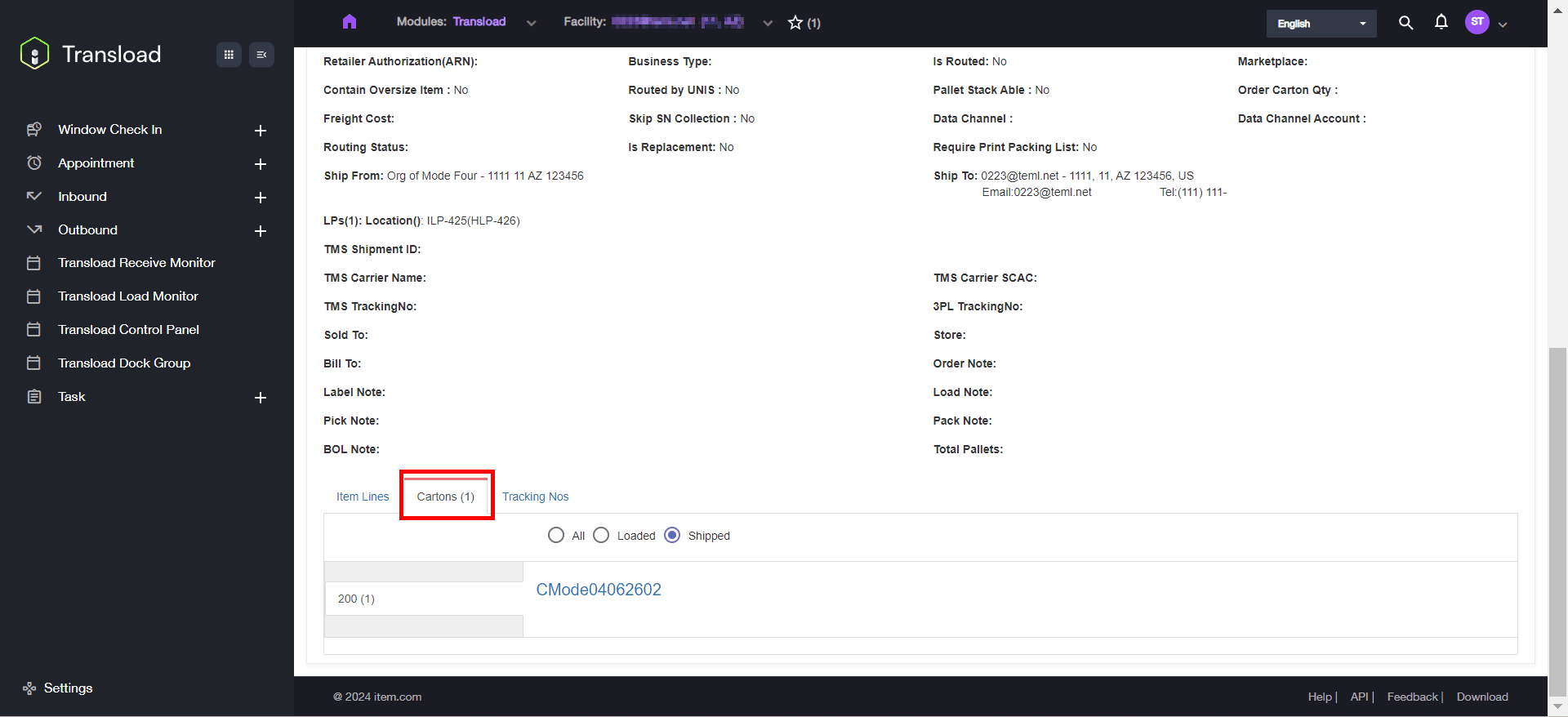

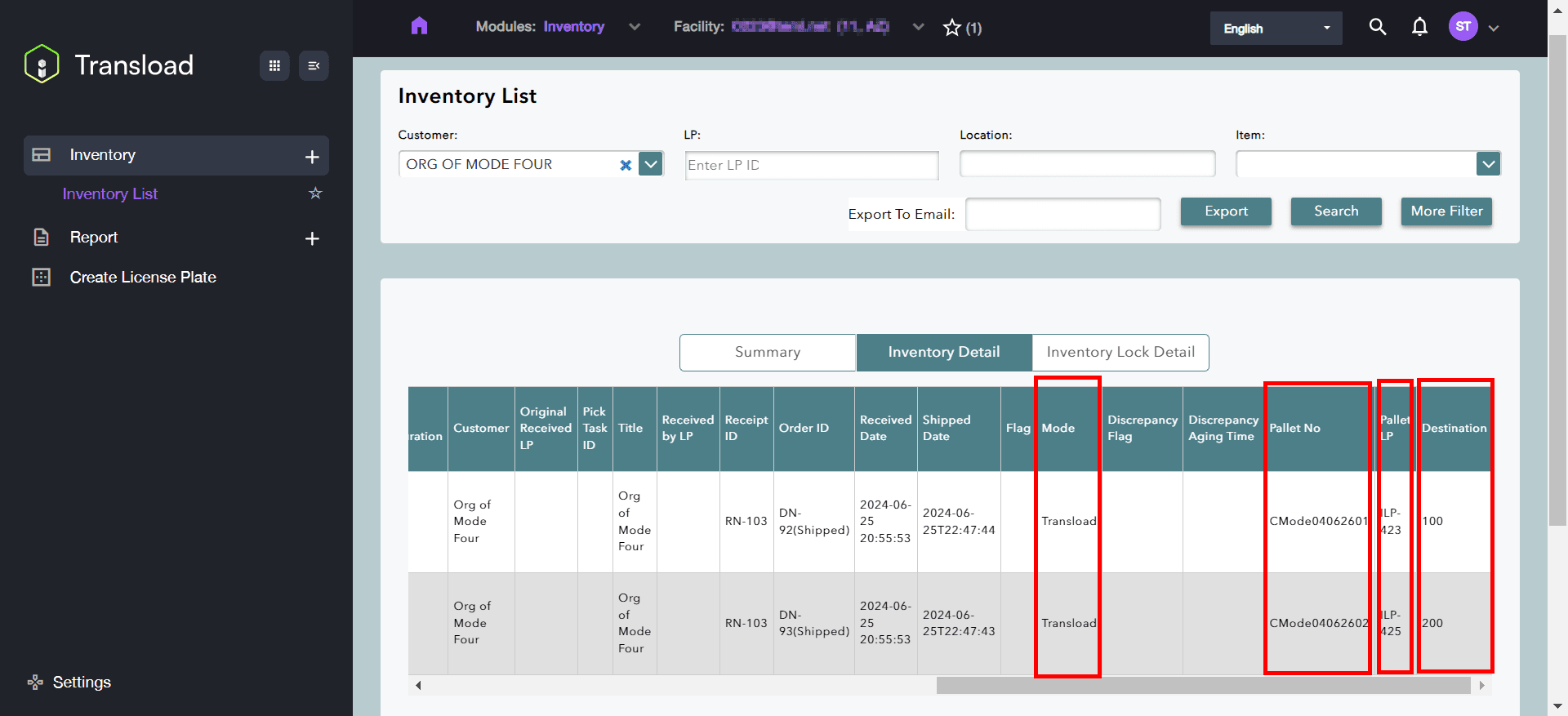

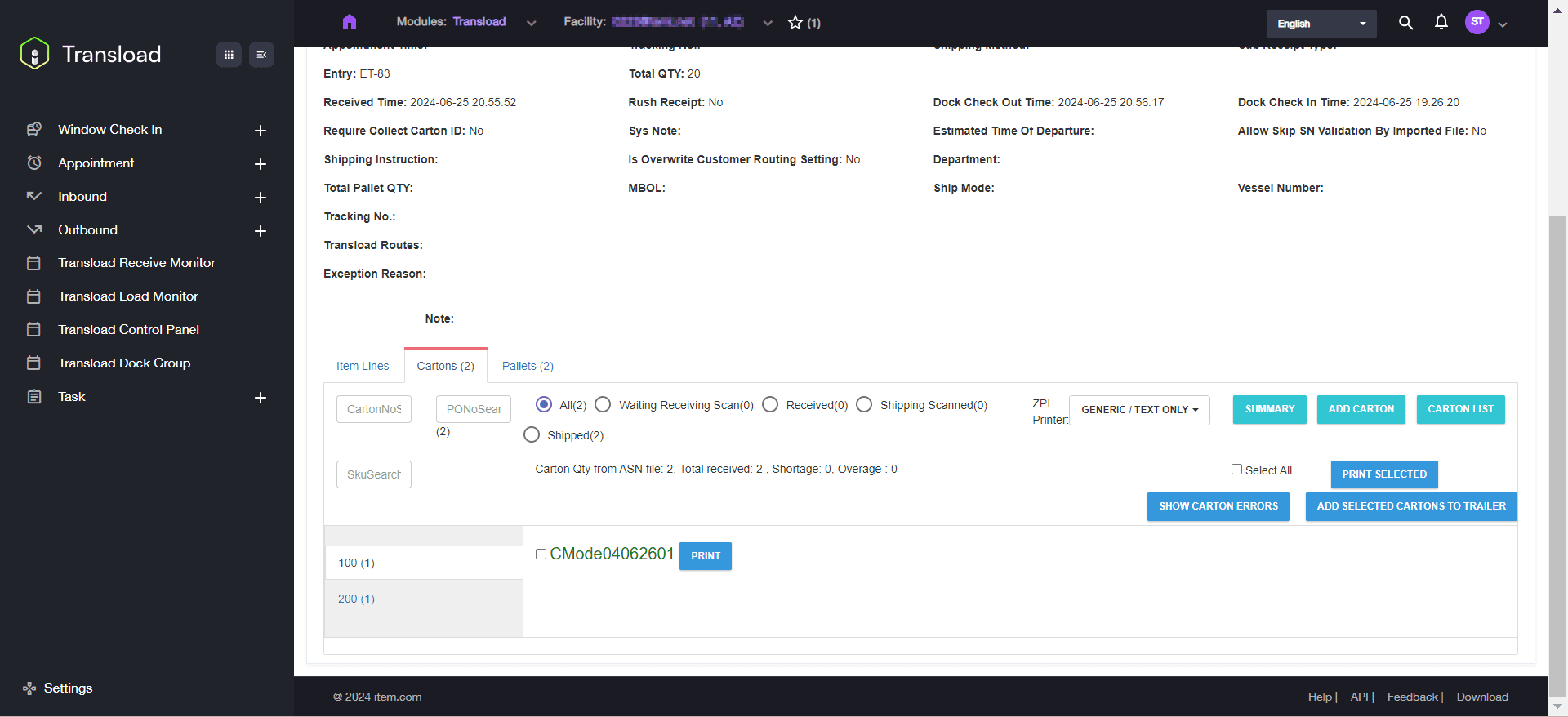

The transload receive task is finished. The inventories of the products are updated accordingly, such as the quantity, the pallet number, etc. The receipt is also updated, including the cartons' information.
Outbound Loading
-
In Item Transload, navigate to Outbound > Load. If the receipt is created manually, you need to click Add Transload Load and create a load with the required destination; if the receipt is created via EDI, then a corresponding Load/Order is already automatically created and you can just select this Load.
-
Go to Window Check In > Entry List, create an entry, and finish window check-in with the Load ID from last step. A transload load task is created and a specific assignee is appointed for this task.
-
The assignee then finds and finishes the transload load task in the Transload app on the work phone. Refer to the following instructions.
a. Log into the Transload app on the work phone.

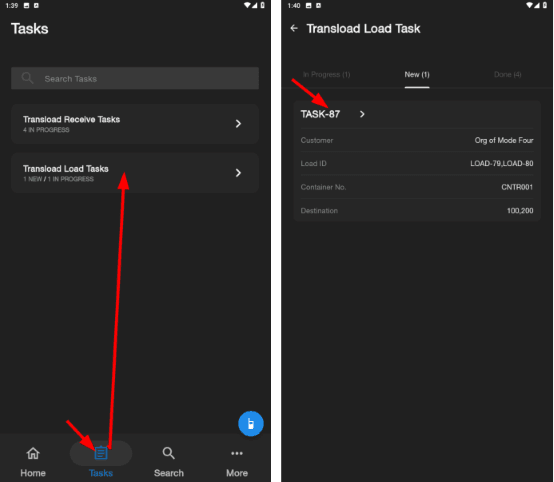

b. Go to Tasks > Transload Load Tasks, find the desired task, and tap the task ID.

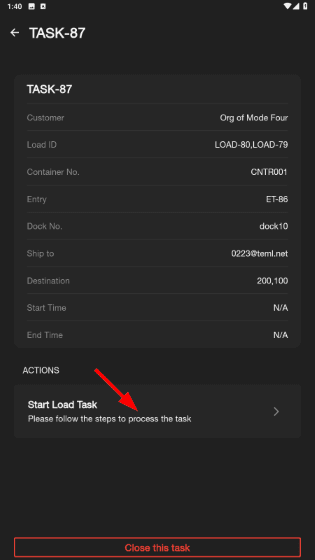

c. Tap Start Load Task.

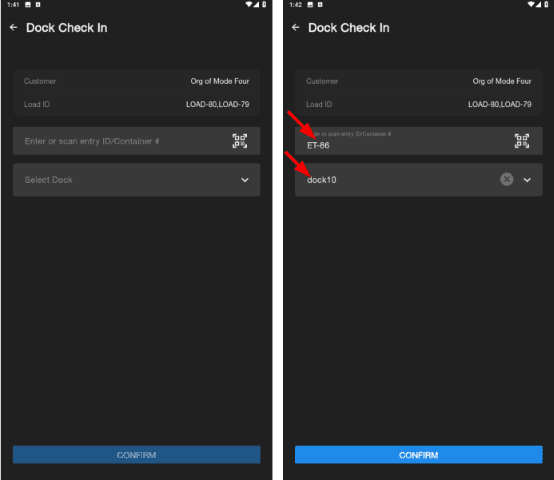

d. Enter or scan the Entry ID or Container No., select the dock No., and tap CONFIRM.

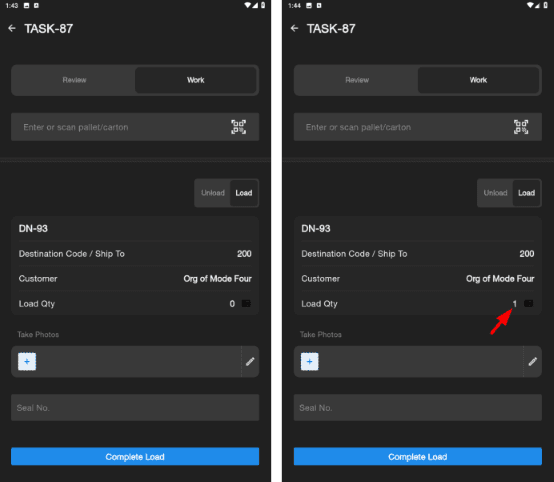

e. Tap a Load ID. In the Work tab, scan or enter the location, and then scan or enter the pallets. The Load Qty is updated.
f. (Optional) If there is any damaged cartons or products found, tap the + icon to take photos of them. To unload any loaded cartons, tap Unload, select the cartons, and unload them.
g. Tap Complete Load when all the pallets are scanned.
h. Return to the previous page and tap Close this task when all the loads are completed.
The transload load task is finished and the status of both the Load and the Order will be marked as Shipped. The inventories of the products are updated accordingly, such as the quantity, the pallet number, etc.
